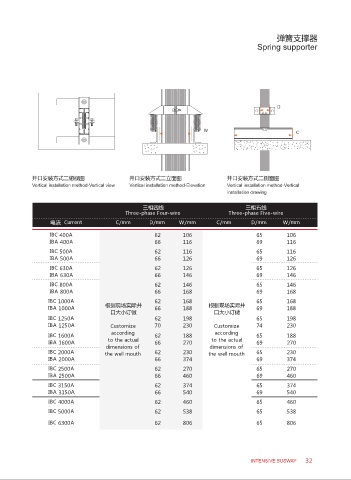

Page 33 - 艾博母线有限公司

弹簧支撑器
Spring supporter

井口安装方式二俯视图 井口安装方式二立面图 井口安装方式二侧面图
Vertical installation method-Vertical view Vertical installation method-Elevation Vertical installation method-Vertical
installation drawing

三相四线 三相五线
Three-phase Four-wire Three-phase Five-wire
电流 Current C/mm D/mm W/mm C/mm D/mm W/mm

IBC 400A 62 106 65 106
IBA 400A 66 116 69 116
IBC 500A 62 116 65 116
IBA 500A 66 126 69 126
IBC 630A 62 126 65 126
IBA 630A 66 146 69 146
IBC 800A 62 146 65 146
IBA 800A 66 168 69 168
IBC 1000A 62 168 65 168
IBA 1000A 根据现场实际井 66 188 根据现场实际井 69 188
口大小订做 口大小订做
IBC 1250A 62 198 65 198
IBA 1250A Customize 70 230 Customize 74 230
IBC 1600A according 62 188 according 65 188
IBA 1600A to the actual 66 270 to the actual 69 270
dimensions of dimensions of
IBC 2000A the well mouth 62 230 the well mouth 65 230
IBA 2000A 66 374 69 374
IBC 2500A 62 270 65 270
IBA 2500A 66 460 69 460
IBC 3150A 62 374 65 374
IBA 3150A 66 540 69 540
IBC 4000A 62 460 65 460
IBC 5000A 62 538 65 538
IBC 6300A 62 806 65 806

INTENSIVE BUSWAY 32
