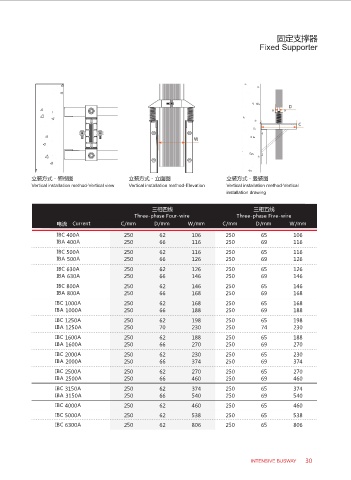

固定支撑器
Fixed Supporter

立装方式－俯视图 立装方式－立面图 立装方式－竖装图
Vertical installation method-Vertical view Vertical installation method-Elevation Vertical installation method-Vertical
installation drawing

三相四线 三相五线
Three-phase Four-wire Three-phase Five-wire
电流 Current C/mm D/mm W/mm C/mm D/mm W/mm

IBC 400A 250 62 106 250 65 106
IBA 400A 250 66 116 250 69 116
IBC 500A 250 62 116 250 65 116
IBA 500A 250 66 126 250 69 126
IBC 630A 250 62 126 250 65 126
IBA 630A 250 66 146 250 69 146
IBC 800A 250 62 146 250 65 146
IBA 800A 250 66 168 250 69 168
IBC 1000A 250 62 168 250 65 168
IBA 1000A 250 66 188 250 69 188
IBC 1250A 250 62 198 250 65 198
IBA 1250A 250 70 230 250 74 230
IBC 1600A 250 62 188 250 65 188
IBA 1600A 250 66 270 250 69 270
IBC 2000A 250 62 230 250 65 230
IBA 2000A 250 66 374 250 69 374
IBC 2500A 250 62 270 250 65 270
IBA 2500A 250 66 460 250 69 460
IBC 3150A 250 62 374 250 65 374
IBA 3150A 250 66 540 250 69 540
IBC 4000A 250 62 460 250 65 460
IBC 5000A 250 62 538 250 65 538
IBC 6300A 250 62 806 250 65 806

INTENSIVE BUSWAY 30
