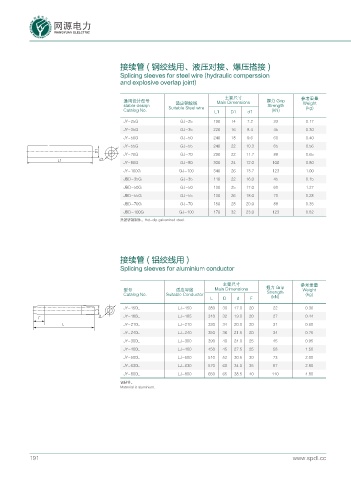

接续管 ( 钢绞线用、液压对接、爆压搭接 )

Splicing sleeves for steel wire (hydraulic comperssion
and explosive overlap joint)

主要尺寸 参考重量
通用设计型号 适应钢绞线 Main Dimensions 握力 Grip Weight
stable desiqn Suitable Steel wire Strength (kg)
Catalog No. L1 D1 d1 (kN)

JY-25G GJ-25 190 14 7.2 33 0.17
JY-35G GJ-35 220 16 8.4 45 0.30
JY-50G GJ-50 240 18 9.6 60 0.40
JY-55G GJ-55 240 22 10.3 65 0.56
&
JY-70G GJ-70 290 22 11.7 88 0.65
. F
JY-80G GJ-80 300 24 12.0 100 0.80
JY-100G GJ-100 340 26 13.7 123 1.00
JBD-35G GJ-35 110 22 16.0 45 0.15
JBD-50G GJ-50 130 25 17.0 60 1.27
JBD-55G GJ-55 130 26 18.0 70 0.28
JBD-70G GJ-70 150 28 20.0 88 0.35
JBD-100G GJ-100 170 32 23.0 123 0.52
热镀锌钢制件。Hot-dip galvanized steel.

接续管 ( 铝绞线用 )
Splicing sleeves for aluminium conductor

主要尺寸 参考重量
型号 适应导线 Main Dimensions 握力 Grip Weight
Strength
Catalog No. Suitable Conductor (kg)
L D d F (kN)
JY-150L LJ-150 280 30 17.0 20 22 0.36
&
F JY-185L LJ-185 310 32 19.0 20 27 0.44
(
. JY-210L LJ-210 330 34 20.0 20 31 0.60
JY-240L LJ-240 350 36 21.5 20 34 0.75
JY-300L LJ-300 390 40 24.0 25 45 0.95
JY-400L LJ-400 450 45 27.5 25 58 1.50
JY-500L LJ-500 510 52 30.5 30 73 2.00
JY-630L LJ-630 570 60 34.0 35 87 2.80
JY-800L LJ-800 650 65 38.5 40 110 4.80
铝制件。
Materrial is aluminium.

191 www.spdl.cc
