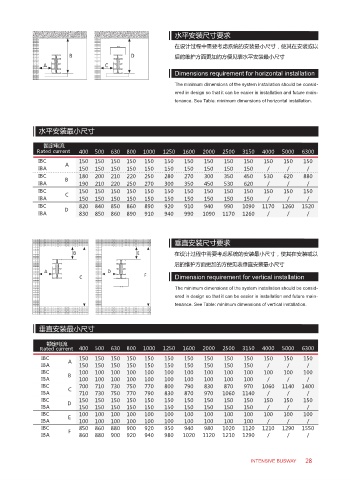

水平安装尺寸要求
在设计过程中需要考虑系统的安装最小尺寸，使其在安装或以

后的维护方面更加的方便见表水平安装最小尺寸

Dimensions requirement for horizontal installation

The minimum dimensions of the system installation should be consid-
ered in design so that it can be easier in installation and future main-
tenance. See Table: minimum dimensions of horizontal installation.

水平安装最小尺寸

额定电流
Rated current 400 500 630 800 1000 1250 1600 2000 2500 3150 4000 5000 6300
IBC A 150 150 150 150 150 150 150 150 150 150 150 150 150
IBA 150 150 150 150 150 150 150 150 150 150 / / /
IBC B 180 200 210 220 250 280 270 300 350 450 530 620 880
IBA 190 210 220 250 270 300 350 450 530 620 / / /
IBC C 150 150 150 150 150 150 150 150 150 150 150 150 150
IBA 150 150 150 150 150 150 150 150 150 150 / / /
IBC 820 840 850 860 890 920 910 940 990 1090 1170 1260 1520
IBA D 830 850 860 890 910 940 990 1090 1170 1260 / / /

垂直安装尺寸要求

在设计过程中需要考虑系统的安装最小尺寸，使其在安装或以
后的维护方面更加的方便见表垂直安装最小尺寸

Dimension requirement for vertical installation
The minimum dimensions of the system installation should be consid-
ered in design so that it can be easier in installation and future main-
tenance. See Table: minimum dimensions of vertical installation.

垂直安装最小尺寸

额定电流
Rated current 400 500 630 800 1000 1250 1600 2000 2500 3150 4000 5000 6300
IBC A 150 150 150 150 150 150 150 150 150 150 150 150 150
IBA 150 150 150 150 150 150 150 150 150 150 / / /
IBC B 100 100 100 100 100 100 100 100 100 100 100 100 100
IBA 100 100 100 100 100 100 100 100 100 100 / / /
IBC C 700 710 730 750 770 800 790 830 870 970 1060 1140 1400
IBA 710 730 750 770 790 830 870 970 1060 1140 / / /
IBC D 150 150 150 150 150 150 150 150 150 150 150 150 150
IBA 150 150 150 150 150 150 150 150 150 150 / / /
IBC E 100 100 100 100 100 100 100 100 100 100 100 100 100
IBA 100 100 100 100 100 100 100 100 100 100 / / /
IBC F 850 860 880 900 920 950 940 980 1020 1120 1210 1290 1550
IBA 860 880 900 920 940 980 1020 1120 1210 1290 / / /

INTENSIVE BUSWAY 28
